topology/3dBorderExtractionImg.cpp

Objects have a border, which are the points which touch the complement in the sense of background adjacency. A border of an object is itself an object, with the same topology as the object.

See also

Border of a digital object

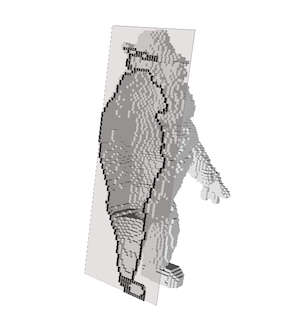

Border extraction visualisation from imported volume


#include <iostream>

#include "DGtal/base/Common.h"

#include "DGtal/base/Common.h"
#include "DGtal/io/readers/VolReader.h"
#include "DGtal/images/ImageSelector.h"
#include "DGtal/images/imagesSetsUtils/SetFromImage.h"
#include "DGtal/io/viewers/PolyscopeViewer.h"

#include "DGtal/helpers/StdDefs.h"
#include "ConfigExamples.h"



using namespace std;
using namespace DGtal;


int main( int argc, char** argv )
{

  std::string inputFilename = examplesPath + "samples/Al.100.vol";
  PolyscopeViewer<> viewer;

  typedef ImageSelector < Z3i::Domain, int>::Type Image;
  Image image = VolReader<Image>::importVol(inputFilename);
  Z3i::DigitalSet set3d (image.domain());
  SetFromImage<Z3i::DigitalSet>::append<Image>(set3d, image, 0,255);
  Z3i::Object18_6 obj3d (Z3i::dt18_6, set3d);
  Z3i::Object18_6 border = obj3d.border();
  viewer << border;
  viewer << ClippingPlane(0,1,0, -40);

  viewer.show();
  return 0;
}
//                                                                           //
